Surface modified silicones

VUV radiation optimizes silicone properties at the surface

© Fraunhofer IFAM

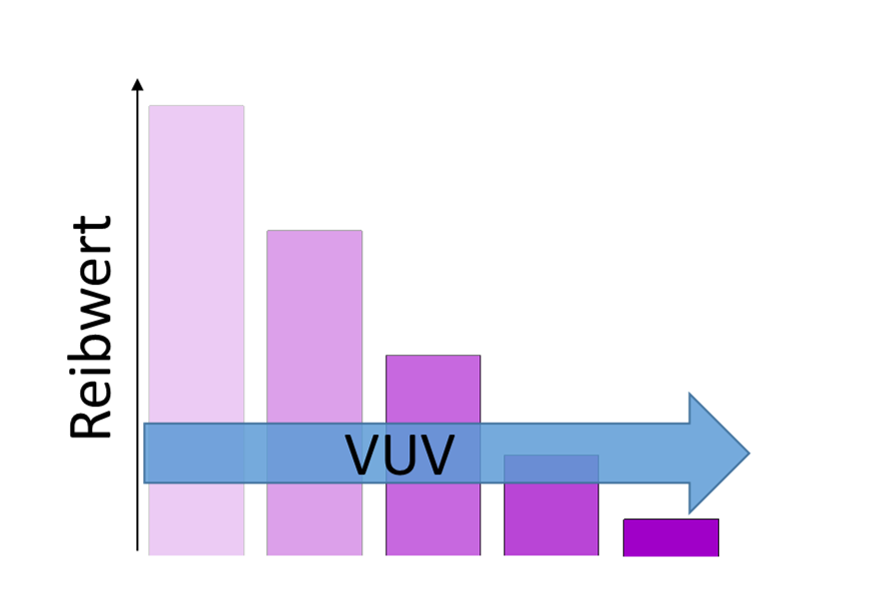

The coefficient of friction of silicone elastomers against various surfaces can be continuously reduced up to 90 percent.
© Fraunhofer IFAM

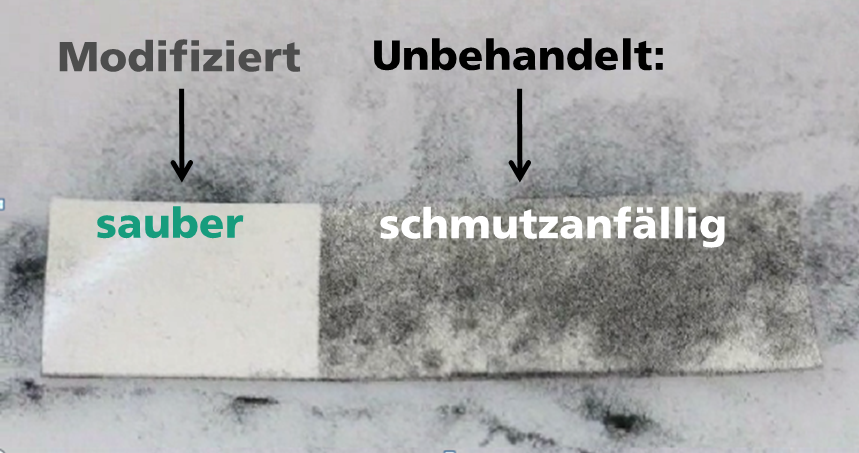

The example of the half-modified silicone shows that the adhesion of dirt is significantly reduced.
© Fraunhofer IFAM

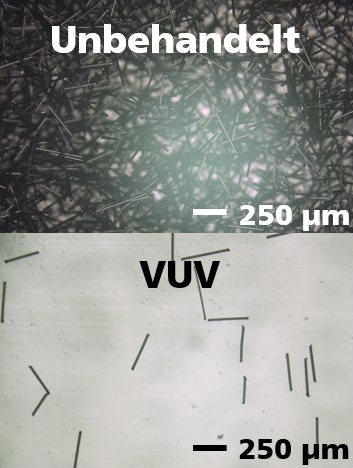

Microscope image of modified and untreated silicone surface after covering with dust and subsequent blowing off.

We encounter silicone elastomers in many different areas. Due to their high elasticity, very good temperature resistance and biocompatibility, they are suitable for a wide variety of applications, for example in medical or food technology. The surface properties of the material, on the other hand, are not ideal and make it difficult to use in certain applications. For example, silicones are susceptible to wear, attract dirt, and can only be bonded to a limited extent. At Fraunhofer IFAM, a process has been developed which allows the surfaces to be modified quickly and flexibly without impairing the excellent mechanical properties of the silicones.



Less wear and simplified assembly thanks to low-friction silicone elastomers

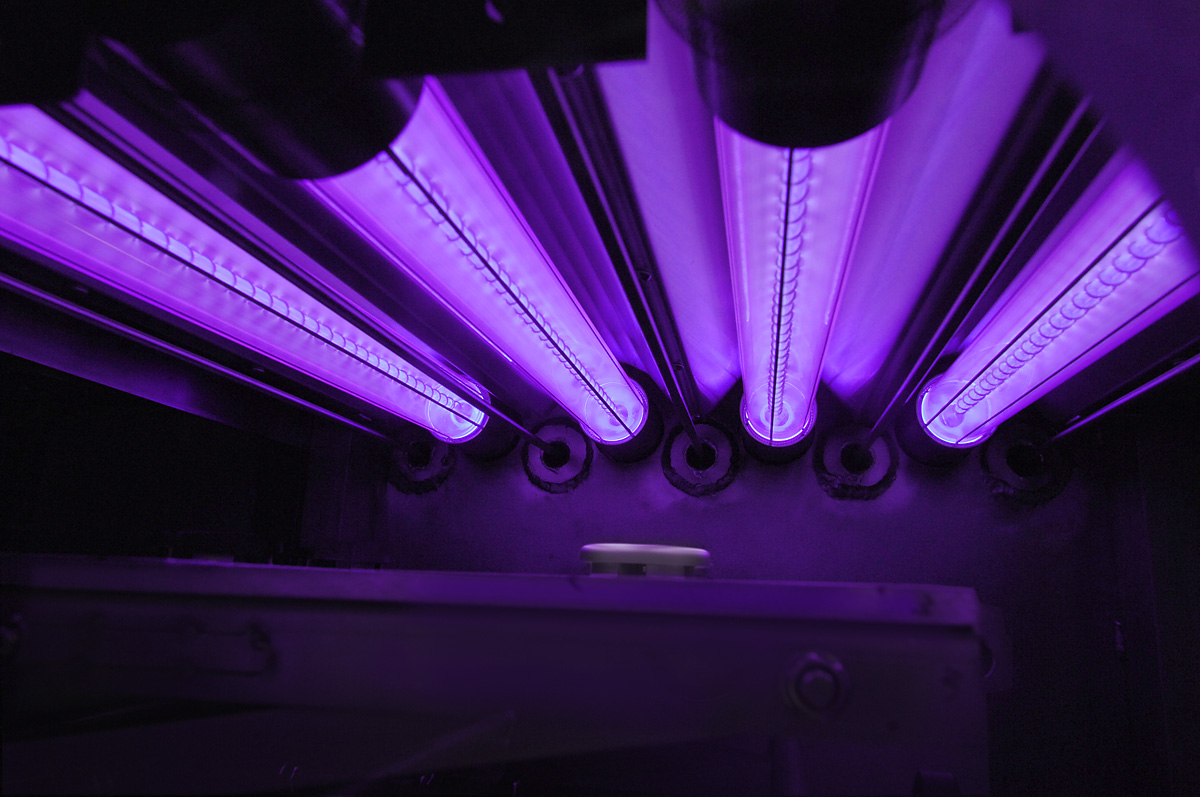

Silicone elastomers have very high coefficients of friction, which disadvantageously causes wear and tear, but also makes handling more difficult, for example when assembling silicone O-rings. There is now a simple solution to overcome these problems as the experts at Fraunhofer IFAM have developed SilMoLight®, a low-CoF (low-friction) modification which works on almost all silicone surfaces and gives the silicones greater resistance. The coefficient of friction can be gradually reduced by up to 90 percent. The new approach uses VUV treatment as an easy-to-use technology that involves irradiating the surfaces with special UV lamps (link to VUV technology). The positive mechanical properties of the silicones remain, while the modified surface properties, similar to a functional layer, enable new applications, such as simplified assembly of hoses or rings.



Silicones with dirt-repellent surfaces

Hygiene and cleanliness are essential in many fields of application for silicones. However, due to their high surface tackiness, silicone elastomers are extremely dirt-attracting, which makes them difficult to use, especially in medical and optical applications. SilMoLight® modification makes silicone surfaces not only having lower coefficients of friction but also dirt-repellent. Irradiation with short-wave UV radiation makes the surfaces smoother and harder. This leads to significantly reduced dust and dirt particle adhesion. In addition, the surfaces are noticeably easier to clean. This long-term stable effect has been tested for numerous standard dusts and particles. The material-related advantages of silicones such as:

  • No change of the bulk material,
  • Elasticity,
  • Temperature resistance and
  • Biocompatibility

remain unchanged after irradiation. Furthermore, no foreign material is used or incorporated into the silicone (no coating / no fluorine incorporation). The effects mentioned can be generated for almost any silicone surface, for silicone seals, profiles, hoses, O-rings, sheathings and encapsulations as well as silicone molded parts of all kinds. Concrete application examples are:

Application area Application examples
Optics
  • Car headlights
  • LEDs
  • Street lightings
Textiles
  • Tents
  • Airbags
  • Imitation leather
  • Bellows
Electronic
  • Control panels
  • Keyboards

Household appliances

  • Baking pans
  • Scraper
  • Appliance seals
Mother and child products
  • Pacifiers
  • Breast pumps
  • Children glasses
Leisure products
  • Parachutes
  • Diving goggles
  • Handles
Medical technology
  • Masks
  • Valves and silicone heaters in respirators and ventilators
  • Catheters
  • Endoscopes
  • Exo-prothesis
© Fraunhofer IFAM

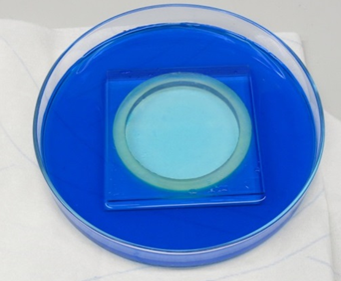

Adhesive-free joined glass/silicone/glass composite, produced according to VUV surface activation, outsourced in colored water.

Optimized adhesive properties - with or without adhesives

Various applications require the bonding of silicone components. This often causes problems, as silicones are very inert and therefore, difficult to bond. VUV irradiation can be used to activate surfaces, thus expanding the range of possible adhesives for joining silicone components. By the help of VUV activation, for example, epoxy resins, polyurethane adhesives and, with very good adhesive strength, adhesive tapes can also be used. This will make the bonding process more flexible. On-site activation is possible and there are new design options for the components. In addition, chemical adhesion promoters can be dispensed with completely.

Particularly innovative is the possibility of bonding VUV-activated silicone surfaces without using any adhesives. This is achieved in the so-called bond process for silicone joined parts in homogeneous bonding or in heterogeneous bonding with glass, aluminum or steel. The composites are stable to aging and hydrolysis. The possible applications are extensive and range from material-bonding dry-material seals to the elimination of adhesives in medical products and devices.
